API Piping Plans

Process Side

Filter Plan Types

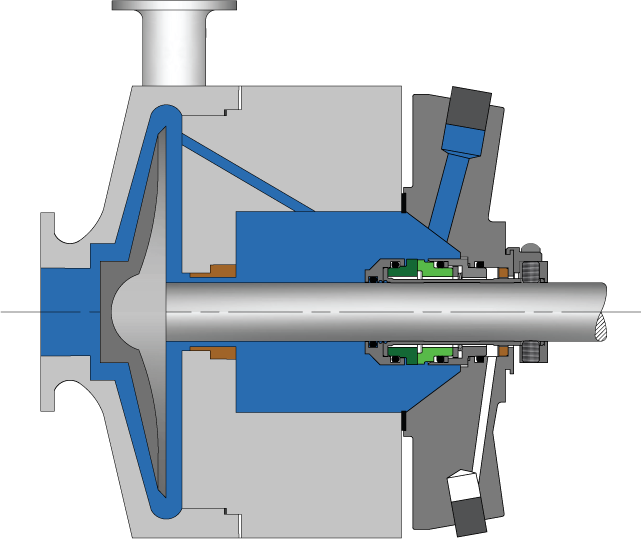

API Plan 01

Internal recirculation from pump discharge to the seal chamber.

See Full Details Learn More
API Plan 01

API Plan 02

Dead-ended seal chamber with no recirculation of fluid and optional cooling/heating jacket.

See Full Details Learn More
API Plan 02

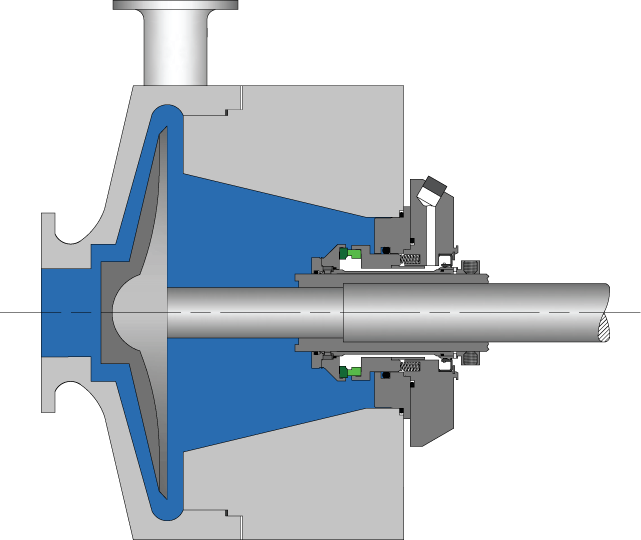

API Plan 03

Open-ended or tapered seal chamber.

See Full Details Learn More
API Plan 03

API Plan 11

Recirculation from pump discharge through a flow control orifice to the seal chamber.

See Full Details Learn More
API Plan 11

API Plan 12

Recirculation from pump discharge through a strainer and flow control orifice to the seal chamber.

See Full Details Learn More
API Plan 12

API Plan 13

Recirculation from the seal chamber through a flow control orifice to pump suction.

See Full Details Learn More
API Plan 13

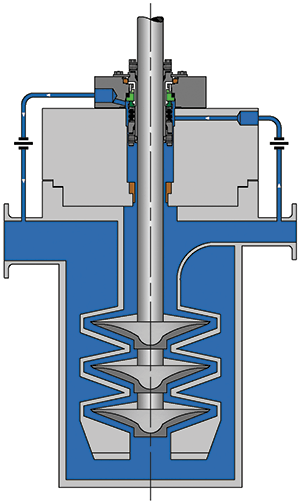

API Plan 14

Recirculation from pump discharge through a flow control orifice to the seal chamber and from the seal chamber through a flow control orifice to pump suction.

See Full Details Learn More
API Plan 14

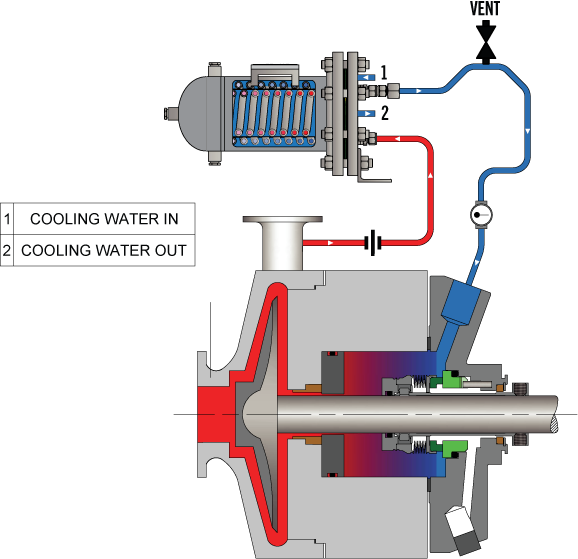

API Plan 21

Recirculation from pump discharge through a flow control orifice and cooler to the seal chamber.

See Full Details Learn More
API Plan 21

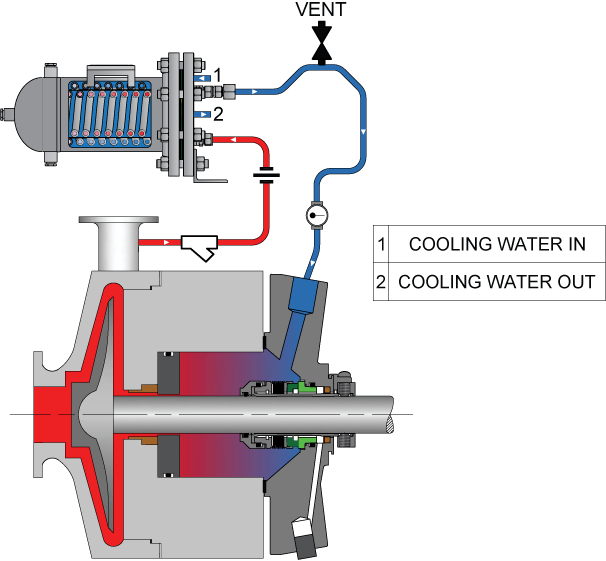

API Plan 22

Recirculation from pump discharge through a strainer, flow control orifice, and cooler to the seal chamber.

See Full Details Learn More
API Plan 22
