A recent trend in crude oil transportation is to utilize API Piping Plan 65/75 to detect and capture primary mechanical seal leakage. Many systems providers have designed sheet metal containment vessels for these applications. These “boxes” are lightly built and susceptible to leakage during a mechanical seal failure event.

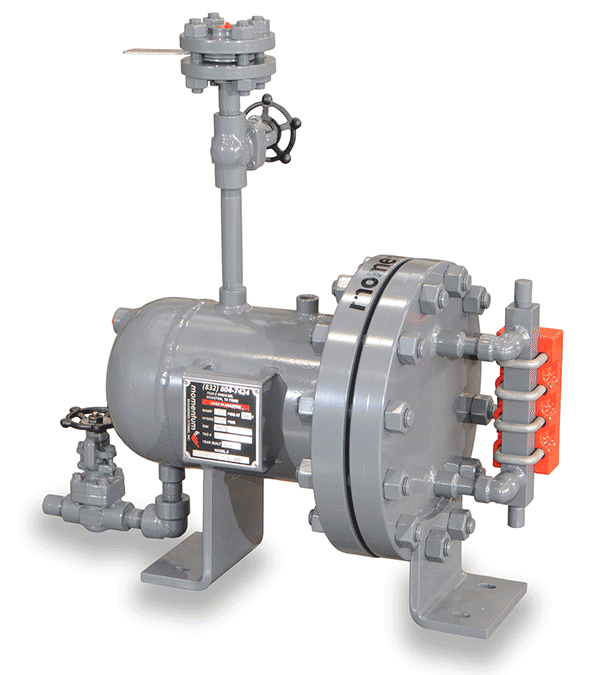

Since our founding in 2013, Flexaseal Engineered Seals and Systems, LLC has promoted more durable solutions to the Oil and Gas markets. Our Plan 65/75 for pipeline applications is a true pressure vessel design. Our standard design features:

  • Removeable head for easy clean out and reliable sealing
  • Liquid level indicator
  • ASME Code welding
  • High quality pipe materials with certificates
  • Heavy duty mounting feet
  • Standard MAWP’s from 100 to over 3000 PSIG
  • Hydrostatic test certificates

Our system can be optioned with a wide variety of instruments from simple float level switches that just alarm to sophisticated level transmitters that provide operations a true level indication in the vessel.

When you are moving hundreds of thousands of barrels of crude in remote locations, at high pressure, why put your company’s reputation at risk with a sheet metal box made by the lowest bidder?

Flexaseal is standing by to tackle your routine and custom seal support system challenges.
