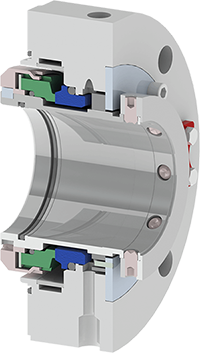

Mechanical Seal Style 59A

API Heavy Duty Rotating Multi-Spring Single Cartridge Seal

For API 682 Applications

Mechanical Seal Style 59A


The Flexaseal Style 59A is designed specifically to conform to API 682 Category 2 Applications for Midstream and Downstream Oil and Gas Applications. Standard design features include:

  • Oversized Monolithic Seal Faces for superior heat dissipation and durability.
  • Circumferential Flush System to evenly distribute cooling flush flow around the seal faces.
  • Convertible Outboard Bushing for fixed, floating and segmented designs to allow for all types of secondary leakage capture.
  • Tang Drive System for reliable face torque transfer and reduced O-Ring hang up.
  • Heavy Duty Springs to mitigate process debris clogging and reduce spring quantity.

The 59A is also available with contacting and noncontacting secondary sealing. The Flexaseal FC seal (Available as 59A/FC) provides decades of proven operational reliability as a contacting secondary seal. The Flexaseal FGSA (Available as 59A/FGSA) is our newest lift-off design for API applications that require a noncontacting secondary seal.



Faces: Premium Grade Resin and Antimony Impregnated Carbons; Nickel Bound Tungsten Carbide; Sintered and Graphite-Loaded Silicon Carbide
Elastomers: FKM, EPDM, TFEP, Buna, Neoprene, Perfluoroelastomers
Metal Parts: 316 and 17-4 Stainless Steel Other options available: Super Duplex Stainless Steel, Alloy C-276
Springs: Alloy C-276

Operating Parameters

Max Temp: -40 to 400°F / -40 to 204°C
Max Pressure: 600 PSIG / 41.4 bar
Max Speed: 4,500 FPM / 23m/s

Note: Max Temperature / pressure / speed indicate operating extremes independently and do not imply the seal will function at these extremes at the same time. Contact Flexaseal Engineered Seals and Systems, LLC if in doubt.
