Design Features & Benefits

Common Applications

  • Crude oil
  • Bitumen
  • Produced water
  • Boiler feed water
  • Amine
  • Ammonia
  • Seawater
  • Light hydrocarbons
  • Pipeline Service
  • Natural Gas Liquids (NGLs)

Specifications

Materials of Construction

IRotary Faces: Silicon carbide, diamond coating
Stationary Faces: Proprietary FlexSiCG (siliconized carbon/graphite), diamond coating
Springs: Hastelloy C-276
Metal Parts: 316 stainless steel, Alloy 255, Hastelloy C-276
O. Rings: Fluoroelastomers, EPDM, TFEP, Perfluoroelastomers

Operating Parameters

Max Temp: 550°F (290°C)
Max Pressure: 2,000 psi (138 bar)
Max Speed: 10,000 FPM (50 m/s)

Note: Max Temperature / pressure / speed indicate operating extremes independently and do not imply the seal will function at these extremes at the same time. Contact Flexaseal if in doubt.

Downloads

For more information on the HPPS

Quote Request

Depending on your specific needs and application, Flexaseal can help you identify the ideal products. Contact us to tell us about your needs and request a quote.

Type A | Category 2/3 Contacting Wet Seals – Arrangement 1

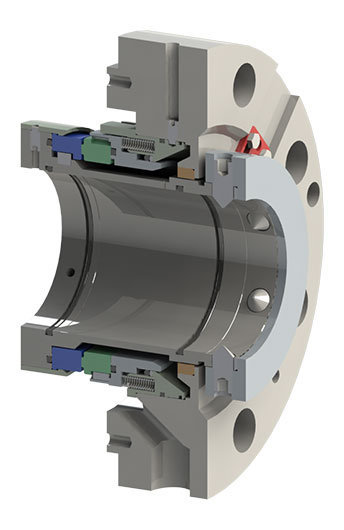

The Flexaseal Style HPPS addresses the challenges of sealing high pressure process fluids with low specific gravities in refinery, pipeline, and power generation industries. The seal design is highly adaptable to meet specific application needs and comes standard with:

  • High-duty seal face materials

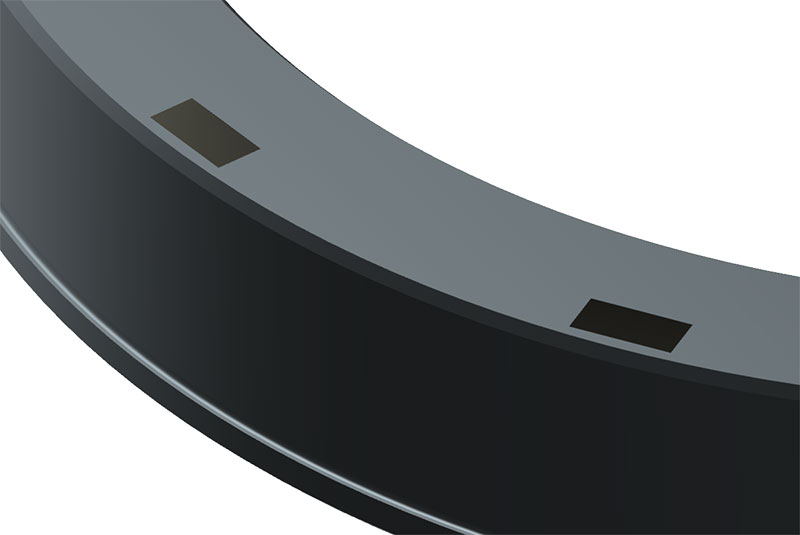

  • Precision laser-etched lubrication-enhancing features on the mating ring amplify film load support, critical to long life in thin fluids like light hydrocarbons and high temperature water.

    ype A | Category 2/3 Contacting Wet Seals
  • Stationary design allows for high-peripheral speeds
  • Robust metal-to-metal torque transfer to flexible stationary element eliminates wear-induced seal hang-up.
  • Metal oxide coated dynamic O-ring surfaces prevent fretting wear from process vibrations

Tailored Solutions for Enhnaced Reliability

Style HPPS seals can be configured with optional features to meet application specific requirements, including:

  • Floating carbon bushing inboard and/or outboard for seal isolation from process and leakage containment
  • Radial or axial pumping ring for Plan 23 circulation in hot processes
  • Multi-point flush injection for distributed cooling and vapor bubble elimination
  • Style CPH outboard non-contacting containment seal for emissions control with API Plan 72/75/76
