Flowmeter

Seal Water Control System

Save Resources And Protect Seal Flush Systems

For Models ESF and EDF

Flowmeter is a precise seal water control system engineered to ensure uninterrupted water flow, providing optimal cooling and lubrication for mechanical seals in various applications. Its versatile design is compatible with all seal makes and types, making it a reliable choice across industries. The modular construction allows customization with multiple options, including a durable glass tube for high visibility, an inductive adjustable alarm for real-time monitoring, an integrated pressure gauge for diagnostics, and a stable floor mounting stand.

Superior Design and Installation Advantages

Designed for accuracy and convenience, the Flowmeter features a clear, detachable metering scale for precise flow measurement and a built-in pressure control valve for easy adjustment. Its alarm-ready design integrates seamlessly with warning systems, while the clog-resistant flow control valve ensures consistent performance.

Flowmeter

Features

Features and Benefits:

  • Precise Seal Water Control: Ensures uninterrupted seal water flow for optimal cooling and lubrication in mechanical seal applications.
  • Versatility: Compatible with all seal makes and types, designed for various applications.
  • Modular Construction: Customizable with multiple options to suit specific operational needs.

Available Options:

  • Glass tube for high visibility and durability.
  • Inductive adjustable alarm for real-time monitoring.
  • Integrated pressure gauge for system diagnostics.
  • Floor mounting stand for stable installation.
  • Hose barb connectors and straight tube connectors for 3/8” compression fittings.

Design Advantages:

  • Clear, detachable metering scale for accurate flow measurement.
  • Built-in pressure control valve for easy operation and adjustment.
  • Alarm-ready design compatible with warning systems.
  • Clog-resistant flow control valve for consistent performance.
  • Integrated tube cleaner with durable polysulfone tubing.

Ease of Installation:

  • Three connector options for flexibility in various setups.
  • Universal mounting bracket for straightforward and secure installation.
  • Straight-line connectors for easy access and maintenance.

Specifications

Materials of Construction

Body: POM (standard) or PVDF (Kynar)
Metering Tube: Polysulphone (PSU)
Metal Parts: AISI 316 and AISI 329
Seals: Viton® O-rings

Operating Parameters

Max Temp: 212ºF (100ºC): POM body
266ºF (130ºC): PVDF(Kynar) body
Max Pressure: 435 psi @ 120ºF
Connections: Standard 3/8″ ID hose
optional 3/8″ OD tube
(for compression fitting)

Note: Max Temperature / pressure indicate operating extremes independently and do not imply the seal will function at these extremes at the same time. Contact Flexaseal if in doubt.

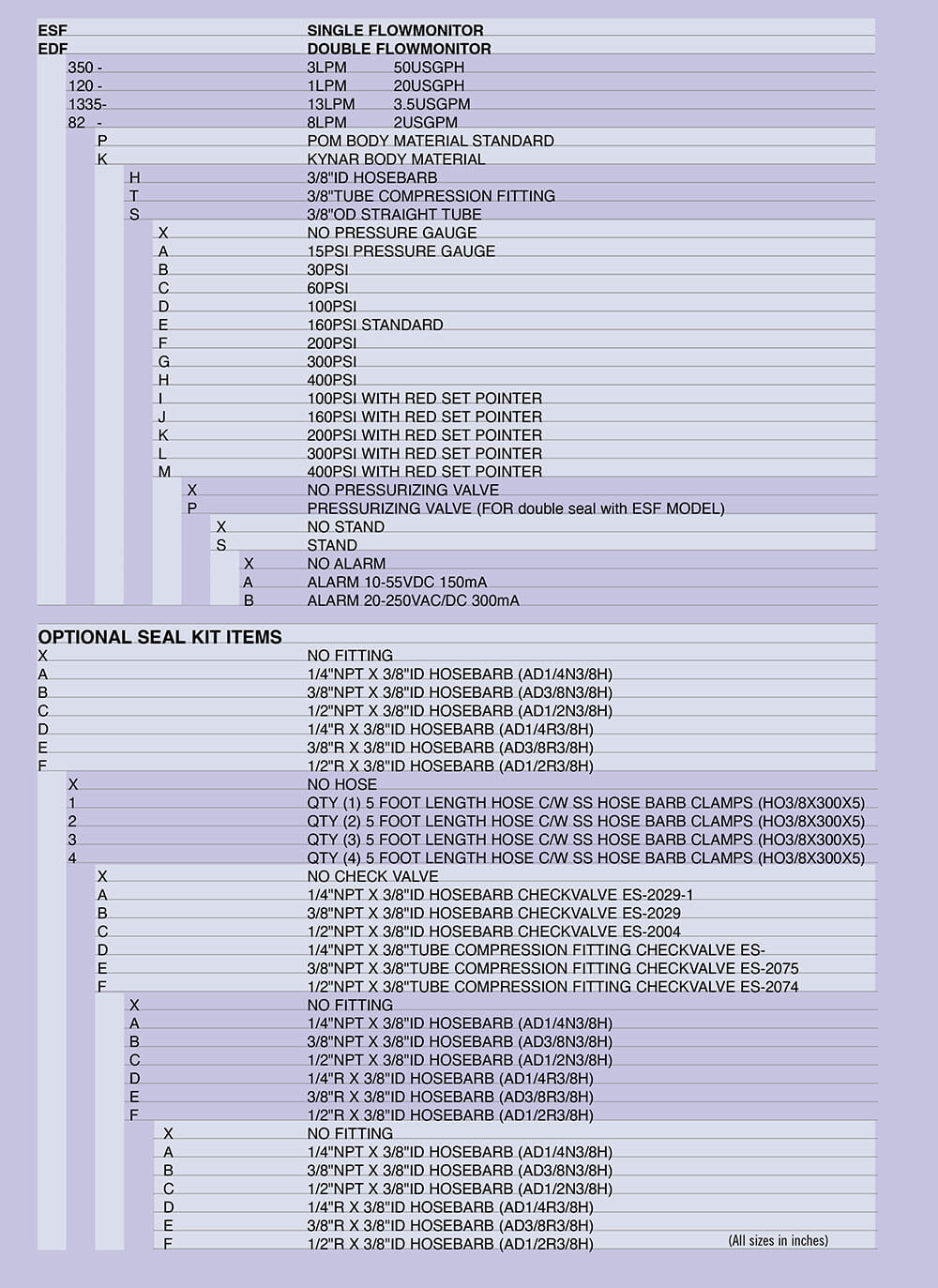

Flowmeter Chart

Downloads

For more information on the Flowmeter

Quote Request

Depending on your specific needs and application, Flexaseal can help you identify the ideal products. Contact us to tell us about your needs and request a quote.
