John Crane Type 8-1T Replacement

FAS Type X

John Crane Type 8-1T Replacement

Features

Technical Features

  • Unbalanced
  • Multi-spring
  • Bi-directional
  • Dynamic O-ring

Specifications

Materials

  • Rotary faces: Carbon Graphite, Silicon Carbide, Tungsten Carbide
  • Stationary seats: Ceramic, Silicon Carbide, Tungsten Carbide
  • O-rings: Buna, Viton, EPDM, Aflas, Neoprene
  • Metallurgy:  316 SS with Hastelloy C™ springs

Operating Conditions

Dimensions:0.500” – 4.000”
Max Pressure:150 PSI / 10 BAR
Max Temperature:160°C / 320°F
Velocity:22.5 M/S – 4500 FPM

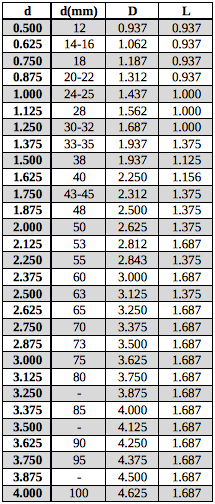

John Crane Type 8-1T Replacement Chart Flex-A-Seal John Crane Type 8-1T
