John Crane Type 1 Replacement

FAS TYPE E

JOHN CRANE® TYPE 1 REPLACEMENT

Features

Technical Features

  • Unbalanced
  • Single Spring
  • Bi-directional
  • Elastomer Bellows
  • Set screw lock collars available

Specifications

Materials

  • ROTARY FACES: Carbon Graphite, Silicon Carbide, Tungsten Carbide
  • STATIONARY SEATS: Ceramic, Silicon Carbide, Tungsten Carbide, Stainless Steel
  • BELLOWS: Buna, Viton, EPDM, Aflas, Neoprene
  • METAL PARTS: 304 SS standard,  316 SS option available

Operating Conditions

Dimensions:0.500” – 4.000”
Max Pressure:150 PSI / 10 BAR
Max Temperature:160°C / 320°F
Velocity:20 M/S – 4000 FPM

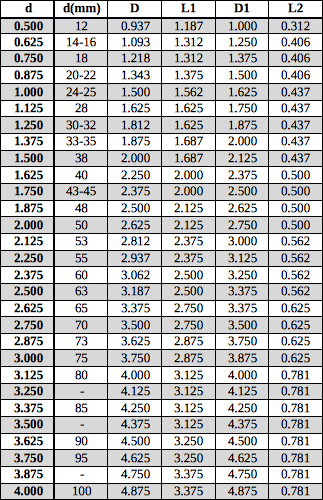

John Crane Type 1 Replacement Chart Flex-A-Seal John Crane Type 1
