FAS TYPE - RO

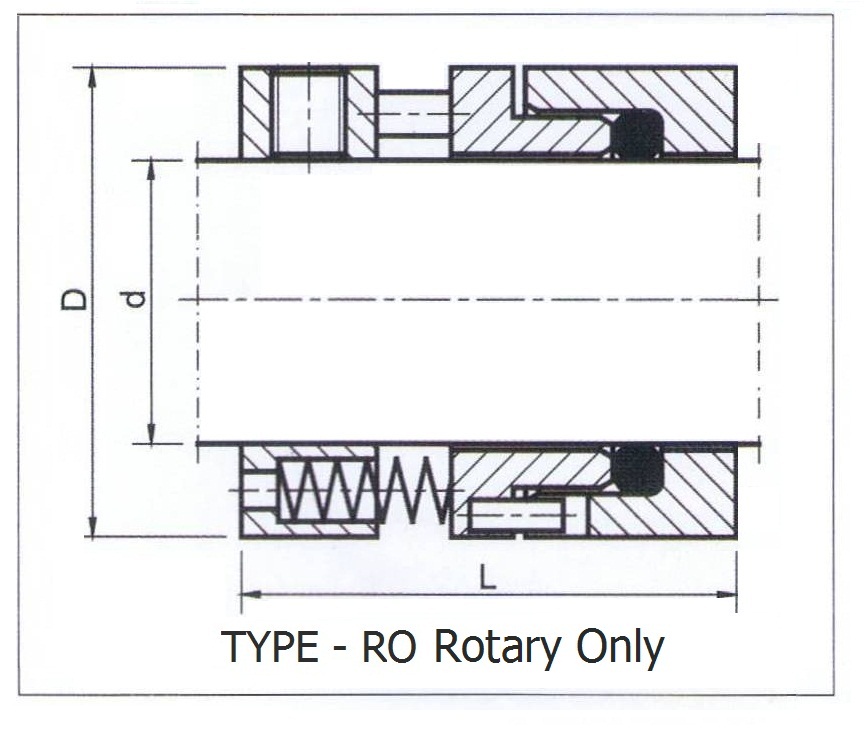

FAS TYPE RO

DURA RO REPLACEMENTS

Features

Technical Features

  • Single unbalanced seal design (Dual configuration available upon request)
  • Multi-spring
  • Bi-directional
  • Dynamic O-ring

Specifications

Materials

  • Rotary faces: Ceramic, Silicon Carbide, Tungsten Carbide
  • Stationary seats: Carbon, Silicon Carbide, Tungsten Carbide
  • O-ring: Buna, Viton, EPDM, Aflas, Neoprene
  • Metallurgy: 316 SS

Operating Conditions:

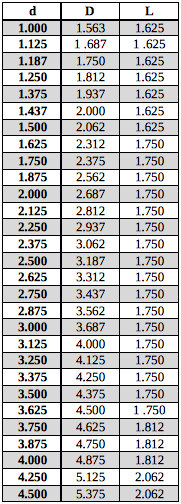

Dimensions:1.000″ – 4.500″
Max Pressure:150 PSI / 10 BAR
Max Temperature:160°C / 320°F
Velocity:22.5 M/S – 4500 FPM

FAS TYPE - RO Flex-A-Seal Dura Ro Replacements

Quotes

Contact sales@flexaseal.com for stationary seat options or to request a quote.
