Burgmann® Type M7

BURGMANN® M7 REPLACEMENTS

Burgmann Type M7

Features

Technical Features

  • Unbalanced single seal
  • Bi-directional
  • To DIN 24960 specifications
  • Dynamic O-ring
  • Non-welded continuous wave spring

Specifications

Materials

  • ROTARY FACES: Silicon Carbide, Tungsten Carbide, Carbon Graphite
  • STATIONARY SEATS: Silicon Carbide, Alumina Ceramic, Carbon Graphite
  • O-RINGS: Buna, Viton, EPDM, Aflas, Neoprene
  • METAL PARTS: 304 SS standard or 316 SS option available

Operating Conditions

Dimensions: 14MM – 100MM
Pressure: 220 PSI / 15 BAR
Temperature: 160°C / 320°F
Velocity: 20 M/S – 4000 FPM

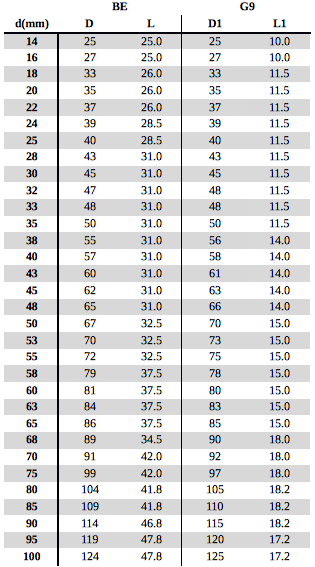

Burgmann Type M7 Chart Flexaseal Burgmann Wave Spring Multi Spring

Quote Request

SHOWN ABOVE WITH G9 SEAT
