Burgmann® Type M3

BURGMANN® M3, M32, M37G REPLACEMENTS

Burgmann Type M3

Features

Technical Features

  • Unbalanced
  • Single seal
  • Conical spring
  • Dynamic O-ring
  • To DIN 24960 specifications

Specifications

Materials

  • ROTARY FACES: Silicon Carbide, Tungsten Carbide, Carbon Graphite
  • STATIONARY SEATS: Silicon Carbide, Alumina Ceramic, Carbon Graphite
  • BELLOWS: Buna, Viton, EPDM, Aflas, Neoprene
  • METAL PARTS: 304 SS standard or 316 SS option available

Operating Conditions

Dimensions: 10MM – 80MM
Pressure: 145 PSI / 10 BAR
Temperature: 160°C / 320°F
Velocity: 10 M/S – 2000 FPM

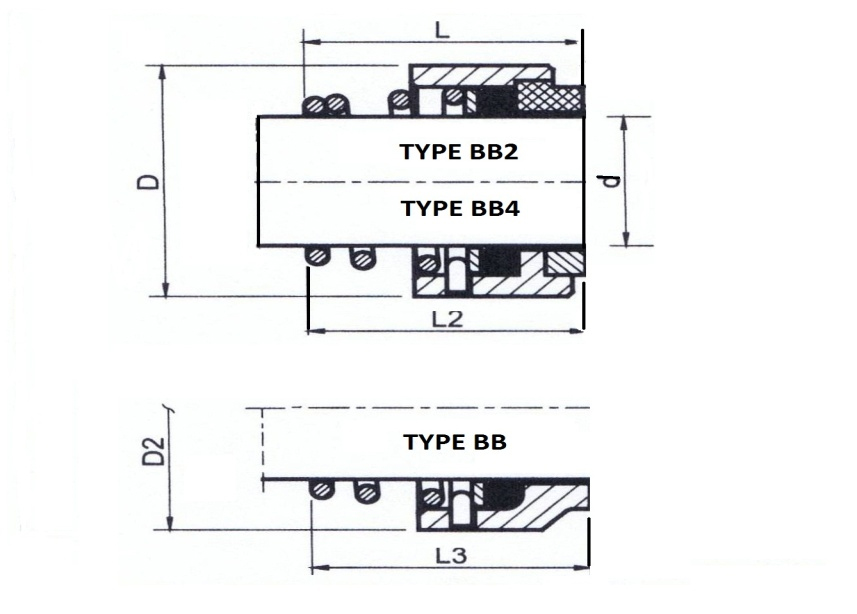

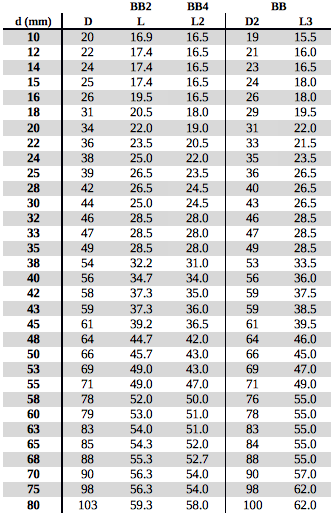

Burgmann Type M3 Style Chart
Flexaseal Burgmann Conical Spring

Quote Request

Depending on your specific needs and application, Flexaseal can help you identify the ideal products. Contact us to tell us about your needs and request a quote.
