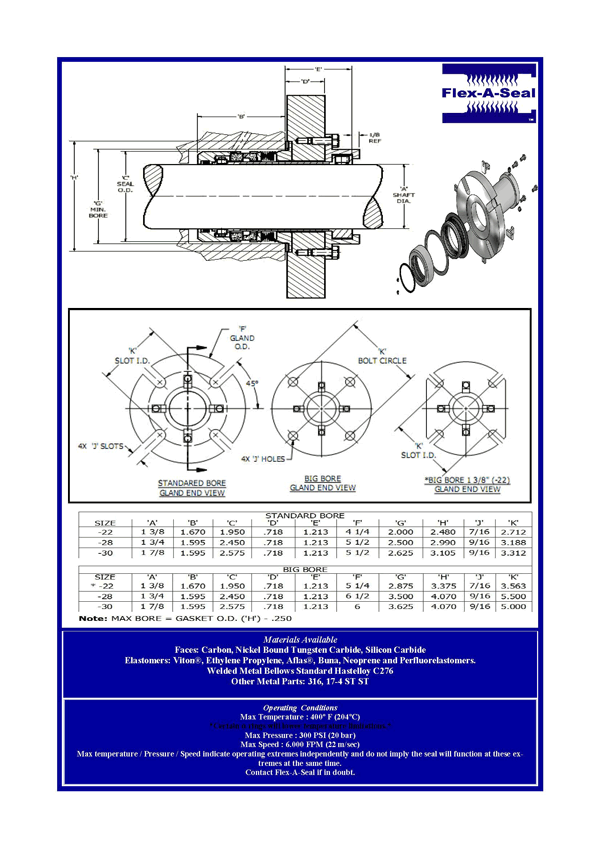

Mechanical Seal Style ECON

SINGLE ECON STATIONARY BELLOWS CARTRIDGE SEAL

Mechanical Seals Style ECON

Features

  • Simple and solid single cartridge seal construction
  • No dynamic elastomers – the most common failure point with multi-spring pusher seal designs
  • Only one O-ring (especially economical if perfluoroelastomer required)
  • Stationary welded metal bellows designed for better alignment
  • Hydraulically balanced
  • Seal faces positioned near lantern ring connection for enhanced heat dissipation
  • Hastelloy® C276 bellows

Specifications

Operating Conditions

Max Temp: 400°F (204°C)
Max Pressure: 300 PSI (20 bar)
Max Speed: 6000 FPM (30 m/sec)

Note: Max Temperature / pressure / speed indicate operating extremes independently and do not imply the seal will function at these extremes at the same time. Contact Flexaseal Engineered Seals and Systems, LLC if in doubt.
