Stationary Seal Rings (Mating Rings)
Features
Stationary Seats (Mating Rings) are the non-rotating primary seal ring mounted in the gland plate or other motionless structural part of the rotating equipment. Various standard shapes are available:
| ‘O’ ring groove seat | Type (01) |
| ‘L’ shape cushion seat | Type (03) |
| Block seat | Type (07) |
| DIN seat | Type (12) |
| ‘T’ Clamp seat | Type (02) |
- Special Stationary seat designs are available, consult factory.
Specifications
Material Available
Each seal ring is supplied with an elastomer or gasket suitable to the application.
- Silicon carbide
- Ni-bound tungsten carbide
- Ceramic
- Ni-Resist alloy
- 17-4 stainless steel
Downloads
FOR MORE INFORMATION ON STATIONARY SEAL RINGS

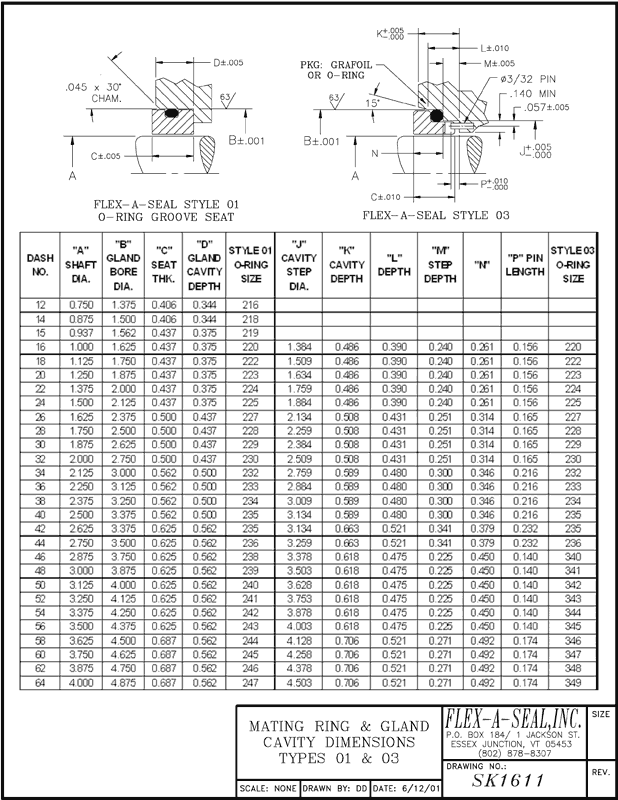

Drawing: O-Ring Groove (-01) and L-Shape Cushion (-03) Seats Inch
Drawing: O-Ring Groove (-01) and L-Shape Cushion (-03) Seats Metric

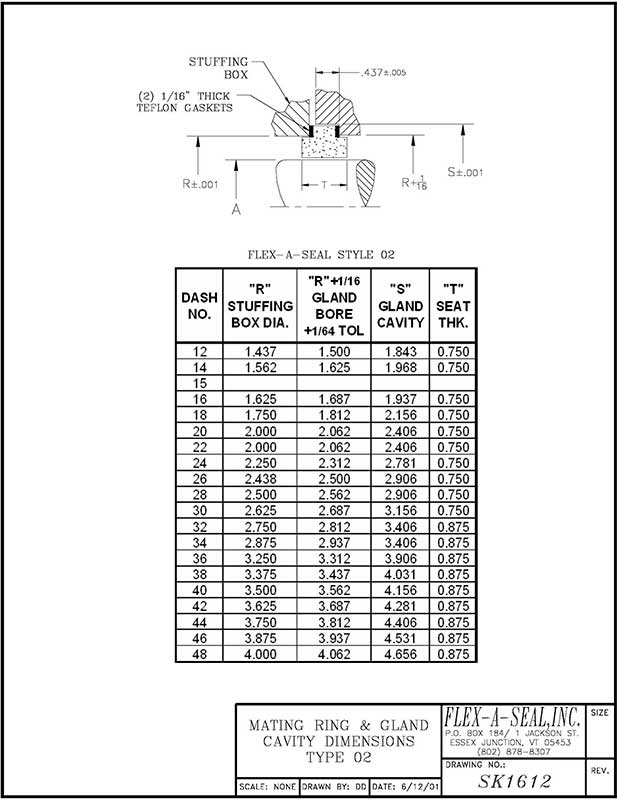

Drawing: T-Clamp (-02) Seats

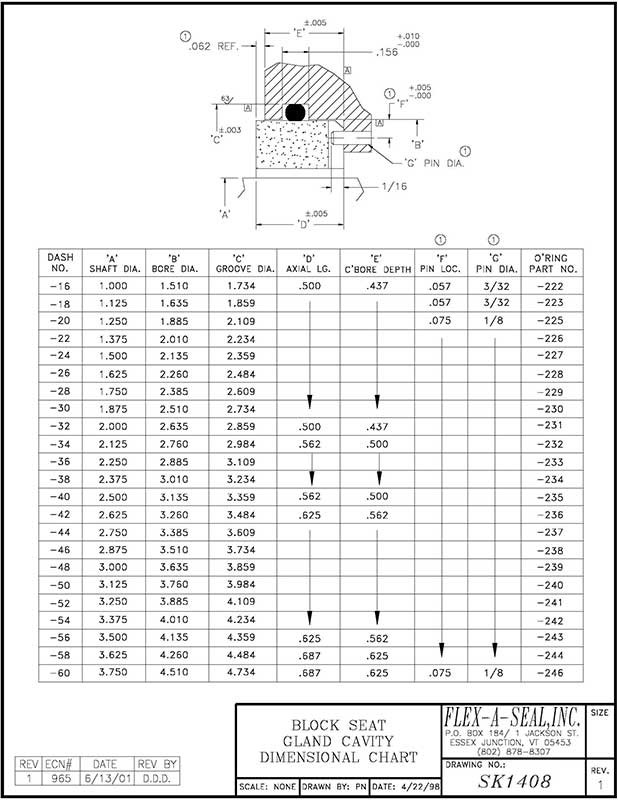

Drawing: Block (-07) SeatsQuote Request
Depending on your specific needs and application, Flexaseal can help you identify the ideal products. Contact us to tell us about your needs and request a quote.
